06 Mar

Visualization of Flyer Attitude

Wei Dong

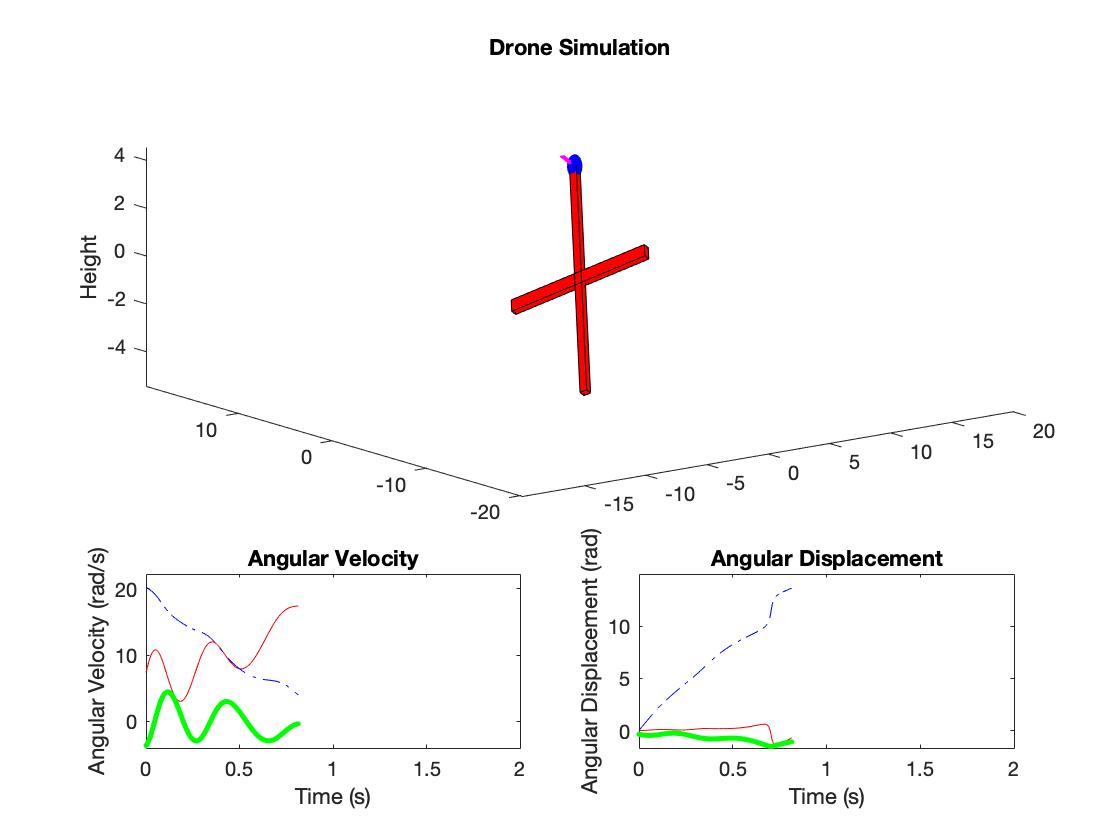

This week I adapted the visualization script for a quadcopter from https://github.com/gibiansky to my single-motor model. The animation helps to determine the tipping point where the drone starts to flip.The blue dot represents the propeller and the line on top represents the general thrust magnitude.
