24 Jul

Developing drawings importer for KiCAD python API

Jingyan Ling

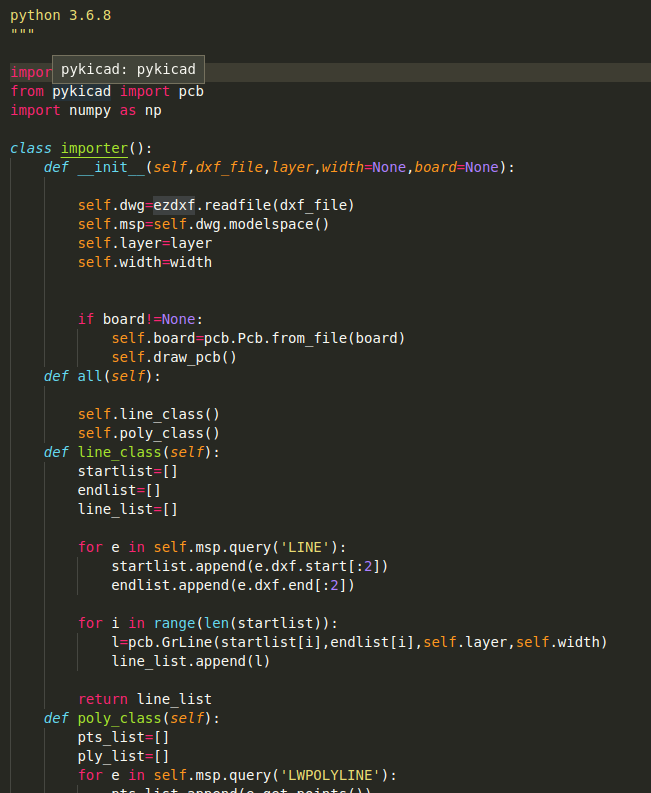

A Python package was developed to help users with importing DXF drawing to KiCAD PCBnew.

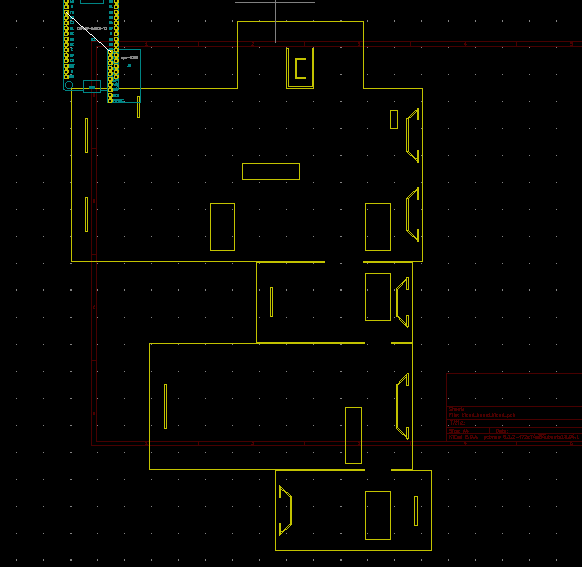

  • The package reads a dxf file and draw everything in PCBnew board design file.
  • Supports layer , width parameters
  • Supports line, ploygons class for now
  • Will develop for Arc, Circle and Text class in later update.
  • Dependencies:
