While trying to create a way for realiable electrical connections using copper coated paper I considered the idea of a 'customizable breadboard’. This system would be designed so components are placed through holes like a breadboard but instead of using wires and standardized internal connections to connect the components. A customized strip of connections would be created and placed under the components.

Initial experimentation:

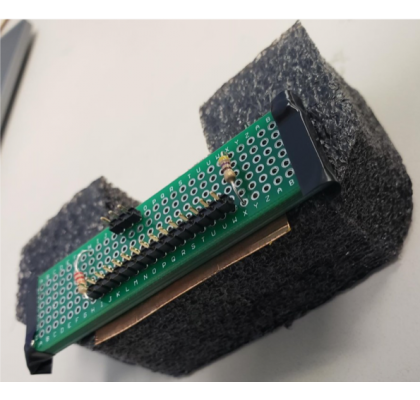

Resistors in this case are just used to prevent the copper strip from moving.

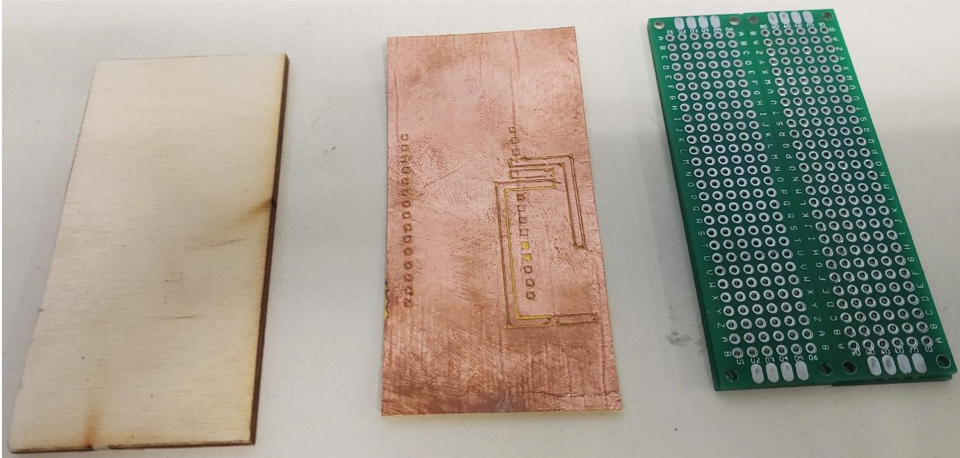

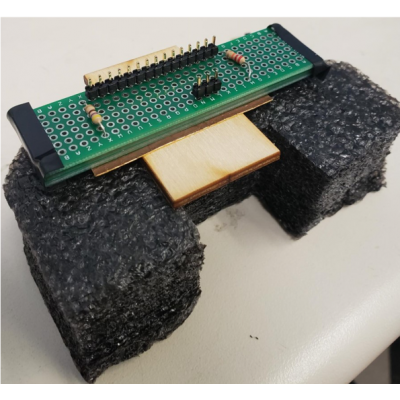

The wooden base improves contact between the pins and the copper surface.

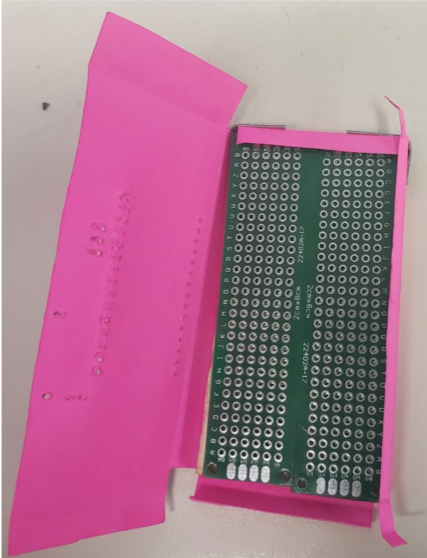

Further work on the design:
