Roco Electrical Software almost completed

Jingyan Ling

By the end of this week, we are expecting the electrical design software for roco to be completely done. This blog is trying to explain the structure and a summary of the software.

  • One can find source code of software here

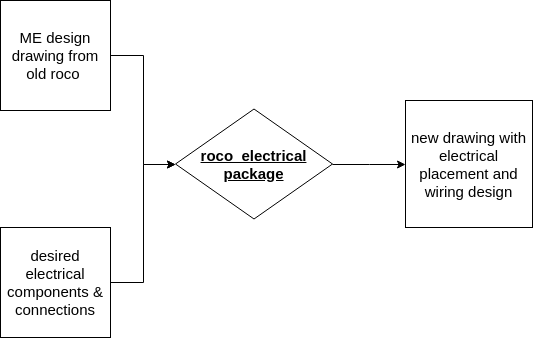

High level of whole project package

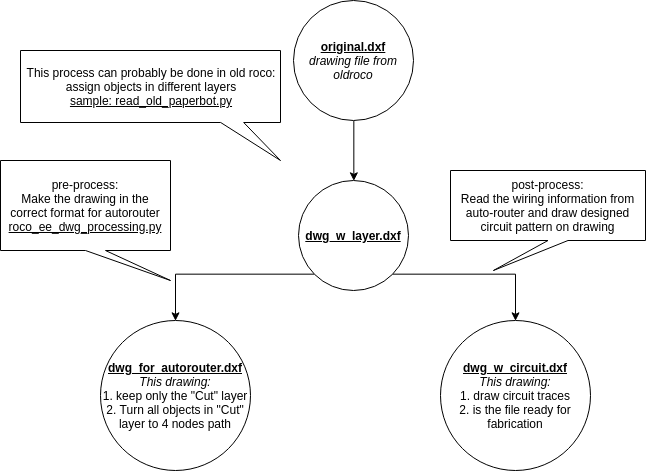

  • Pipeline of drawing changes

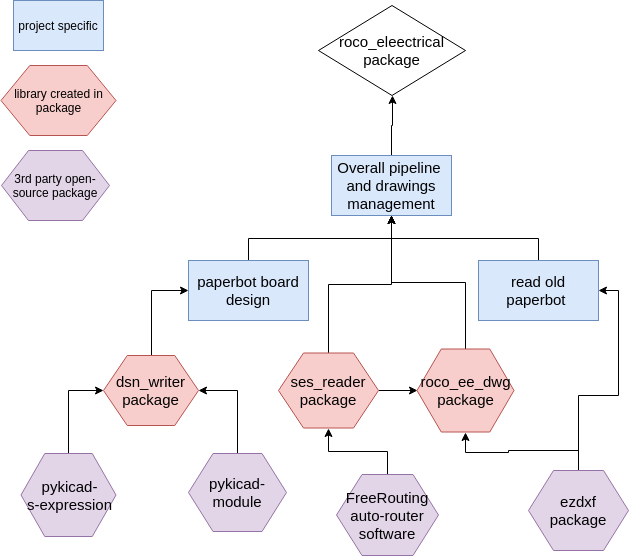

  • Package module and classes breakdown

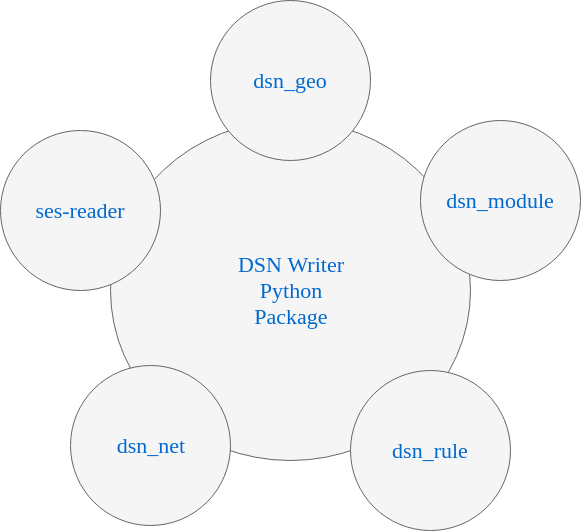

  • Structure of customized package dsnwriter

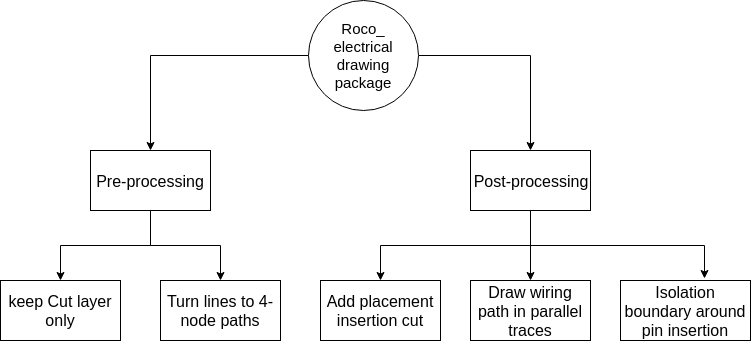

  • Structure of customized package roco_ee_dwg

Demo Video here
