10 Jul

Resistance Testing of Aluminum Film vs. Copper

Daniel Ferguson

After realizing that copper performed better than aluminum in the experiments, we decided to investigate some properties of both materials as well as the results for different types of cuts.

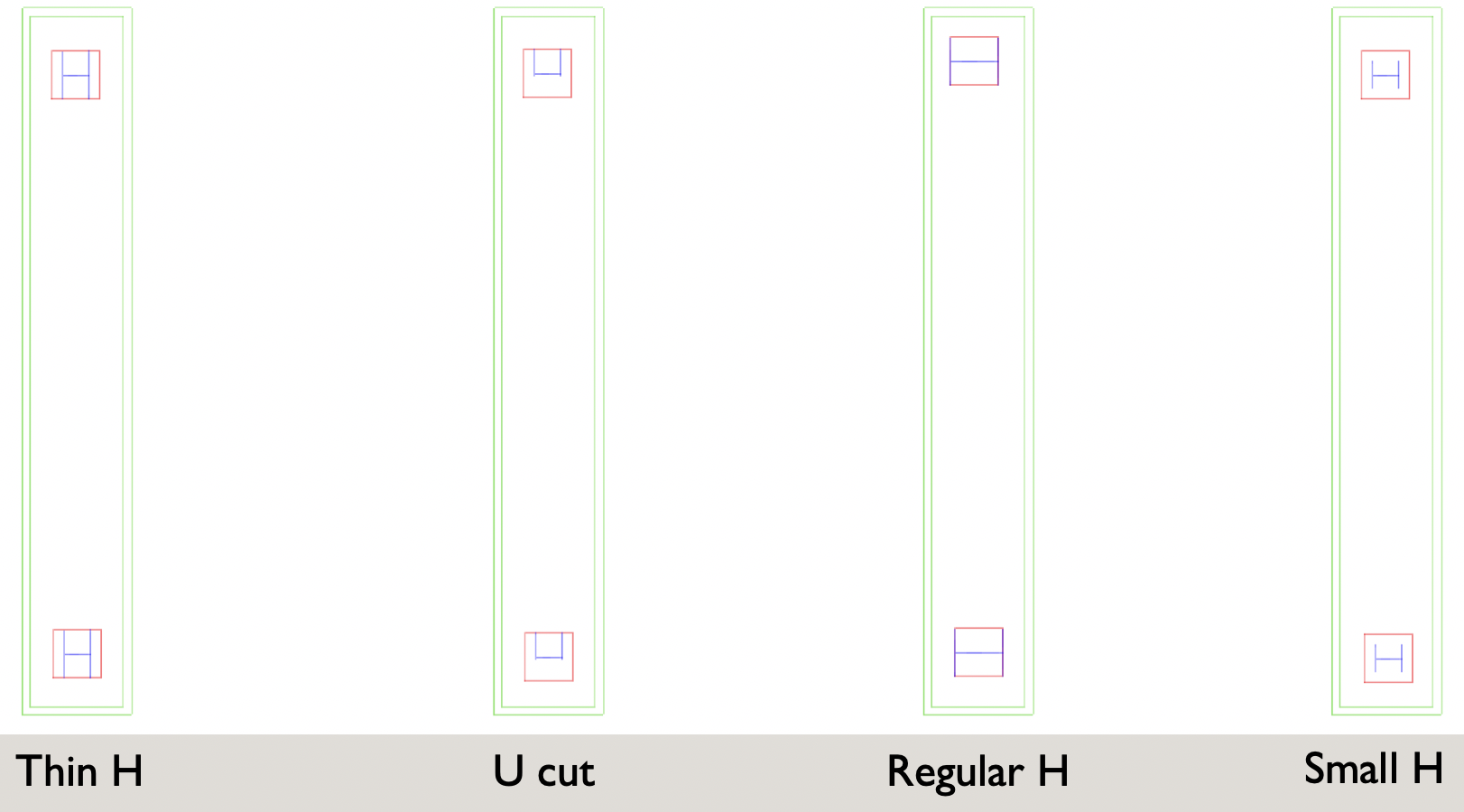

Types of cuts:

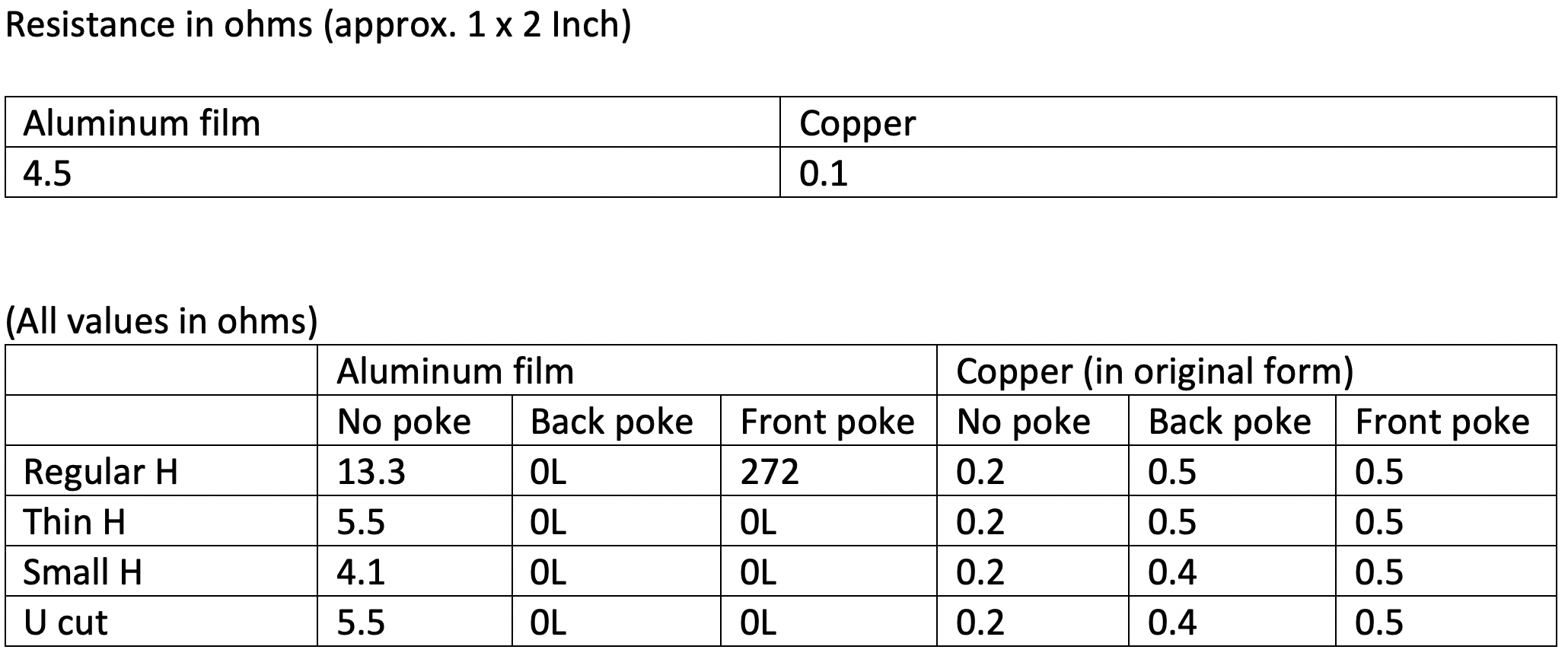

Table of results for resistance testing:

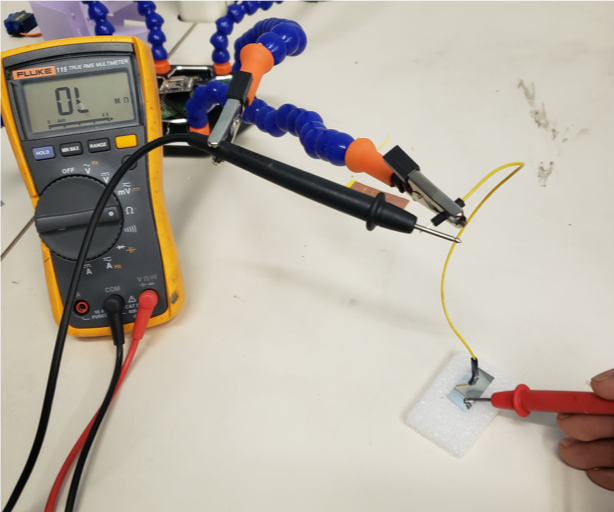

Measuring resistance on the aluminum film:

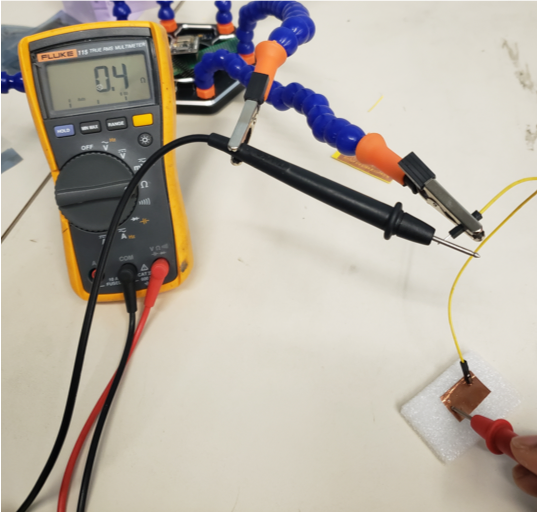

Measuring resistance on the copper tape:
