FORAY - Motor Handle Designs for the blimp

Che Jin Goh (CJ) foray blimp design cad solidworks

There are two variations to the designs of the motor handles, one for the vertical motor and the other for horizontal motors. They are designed with the intention of keeping the weight low and sturdy as this is used with a brushless motor.

Horizontal Motors:

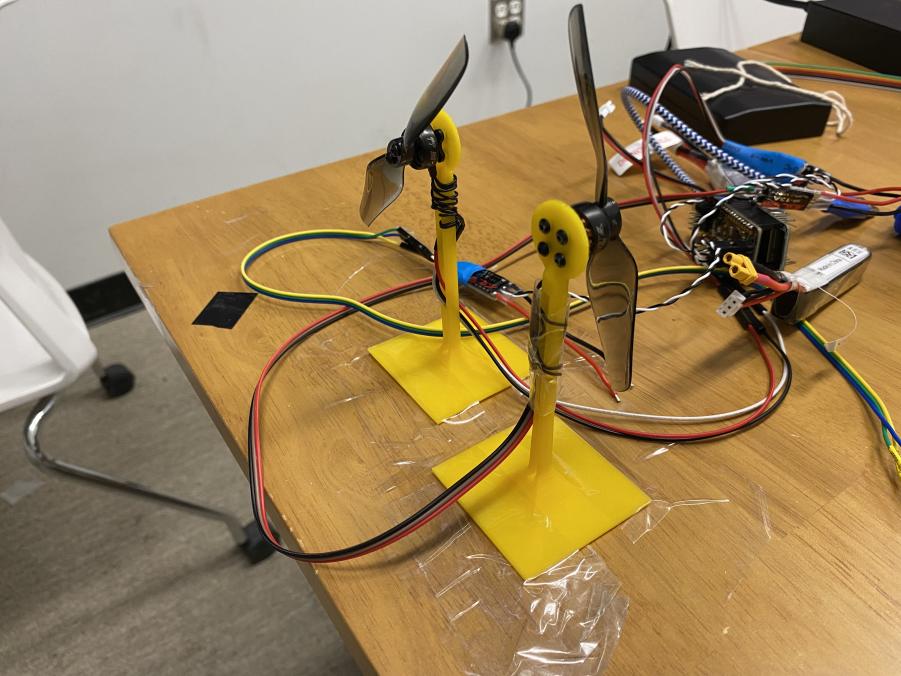

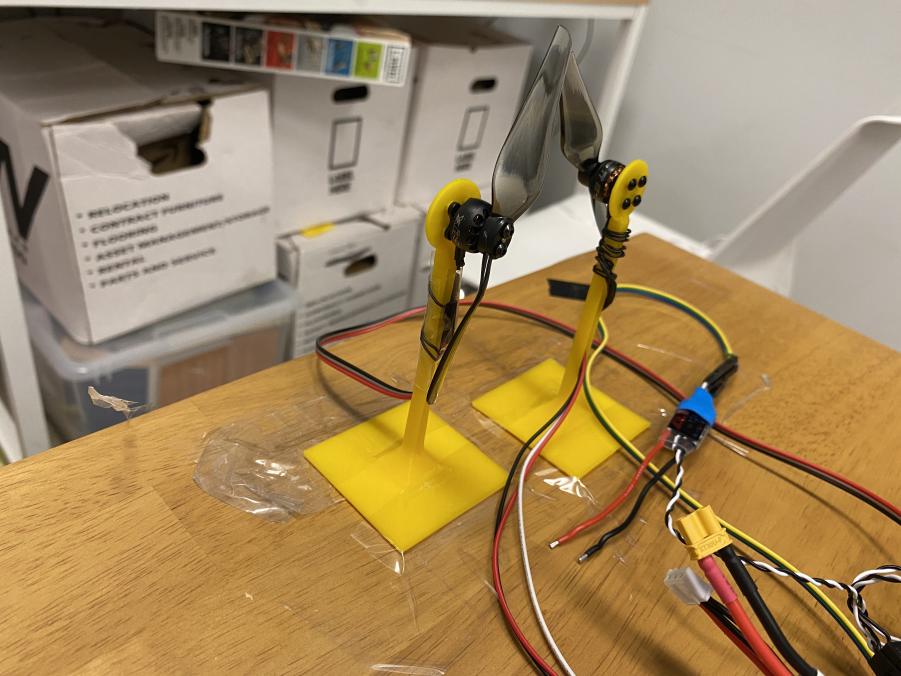

IMG_3084IMG_3085

The design has a hole going straight down the middle beam on the face where the motor is attached, this is so that it is harder for the beam to bend when the brushless motor is spinning, at the same time cutting the overall weight.

Vertical Motors:

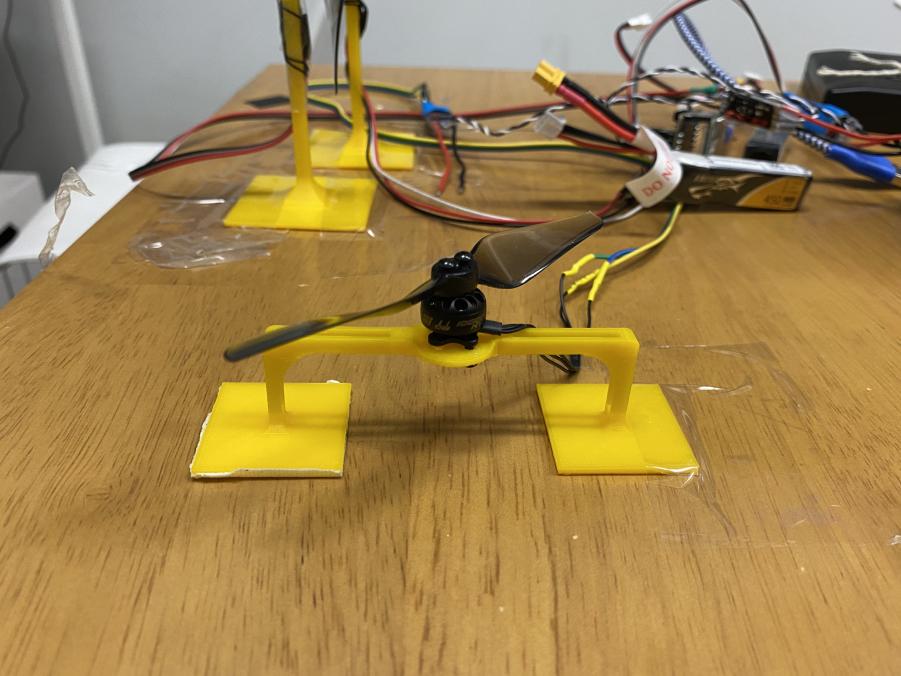

IMG_3083
