FORAY, Controller Case, Battery Case, Motor Case Design

Chang Liu origami robots foray

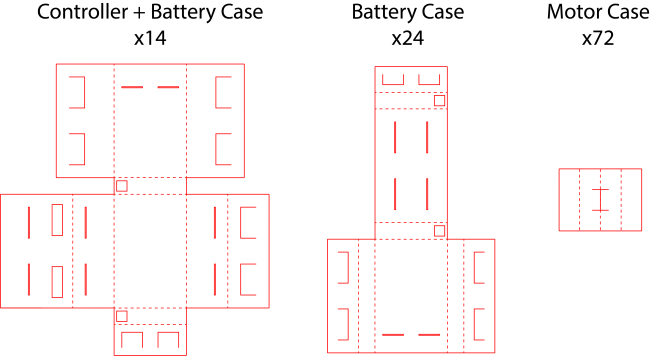

Here are the design files for FORAY project, including

2.2g controller+battery case

1.2g battery case

0.4g motor case

Design Files

(there are 2 types of file: .eps is the vector design file, you can open using InkScape to edit if needed; .pdf is what i converted into A4 size pdf file, incase you need to print using regular printer on papers, and cut by hand. Designs have been scaled to size, so no additional processes needed, just print and cut.)

Controller+battery case:

Controller_Battery_Case.eps

Controller_Battery_Case_Letter_Size.pdf

Battery case:

Battery_Case.eps

Battery_Case_Letter_Size.pdf

Motor case:

Motor_Case.eps

Motor_Case_Letter_Size.pdf

Fabrication Video Example

Alternative Link_1

Alternative Link_2

All design files (version controls) can be found in git here:

Git_Repo
